The ORRE-BRA listener now supports adding unlimited risk assessment elements. Each element must follow the same JSON structure for the listener to function properly. This guide explains how to configure a new risk assessment element to appear on ORRE-BRA tracker items.

Configuring Risk Assessment Elements

1. Locate the Configuration Keys: In the orre-bra section of the Application Configuration JSON, you’ll find two main keys:

   • "orre-bra-tracker-name": Defines the tracker name.

   • "risk-assessment-elements": A list of strings representing the risk assessment elements.

2. Add Risk Assessment Elements: Each element listed in "risk-assessment-elements" must have a corresponding configuration object.

   Example with hazard-analysis:

   {
     "orre-bra": {
       "orre-bra-tracker-name": "ORRE-BRA",
       "risk-assessment-elements": ["hazard-analysis"],
       "hazard-analysis": {
         // ... configurations
       }
     }
   }


   Adding Another Element (dfmea):

   {
     "orre-bra": {
       "orre-bra-tracker-name": "ORRE-BRA",
       "risk-assessment-elements": ["hazard-analysis", "dfmea"],
       "hazard-analysis": {
         // ... configurations
       },
       "dfmea": {
         // ... configurations
       }
     }
   }


Configuration Structure

Each risk assessment element has two configuration sections:

1. orre-bra-tracker-config: Specifies how data is displayed in the ORRE-BRA tracker.

2. risk-assessment-tracker-config: Specifies the data sources for the tracker.

Example Structure:

{
  "hazard-analysis": {
    "orre-bra-tracker-config": {
      // Display configurations
    },
    "risk-assessment-tracker-config": {
      // Data source configurations
    }
  }
}

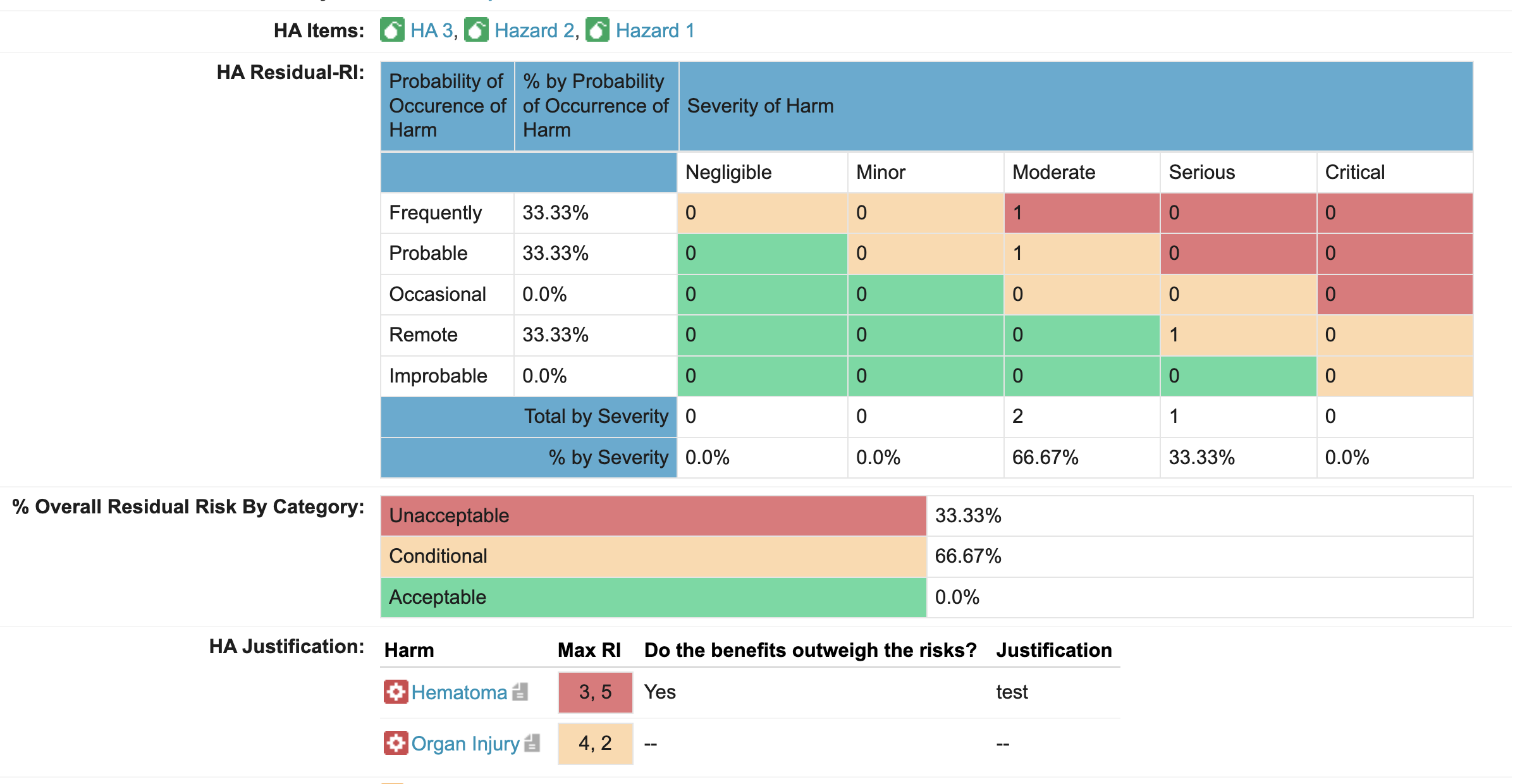

ORRE-BRA Tracker Configuration

The orre-bra-tracker-config section defines how the ORRE-BRA tracker handles risk data. It includes the following fields:

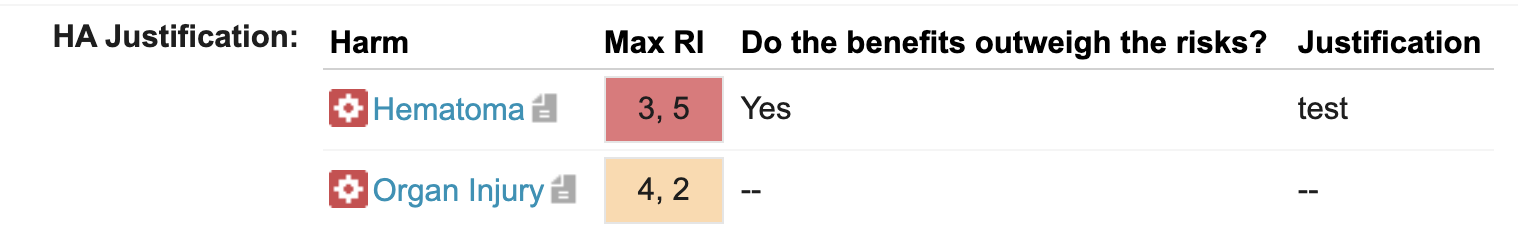

1. justification-table:

   • Maps fields like "harm-wiki-link-key" and "risk-index-key".

   "justification-table": {
     "harm-wiki-link-key": 0,
     "key": 4,
     "risk-index-key": 1
   }

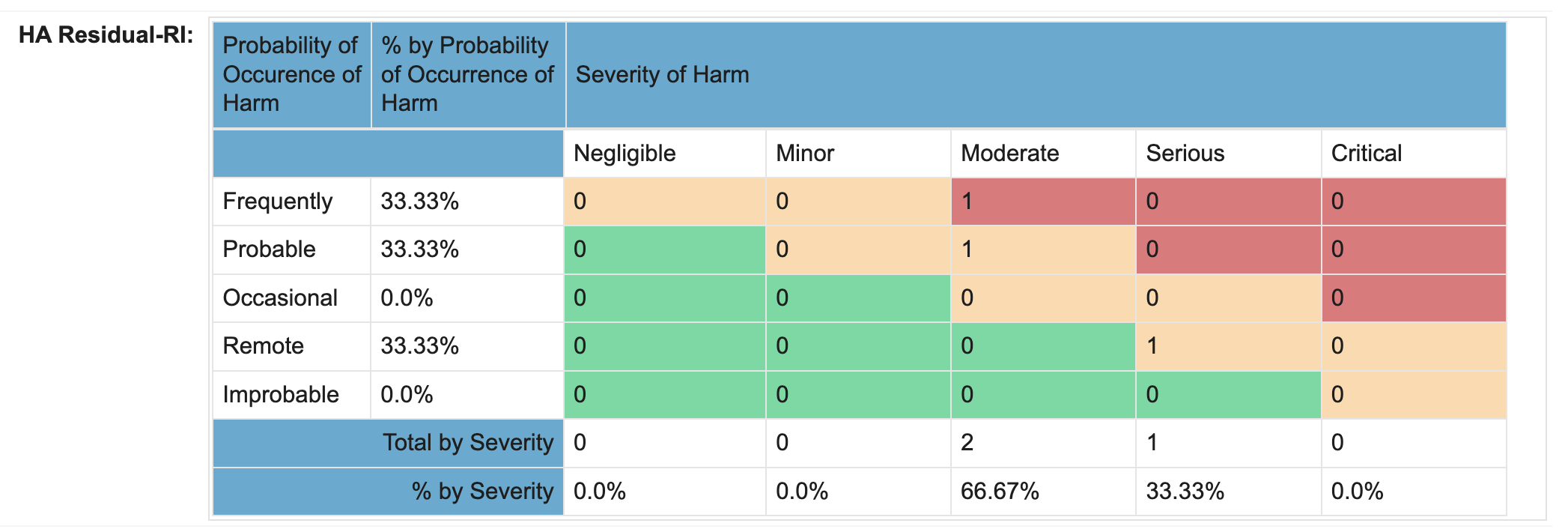

2. residual-ri-profile-table:

   • Handles residual risk profile data.

   "residual-ri-profile-table": { "key": 0 }

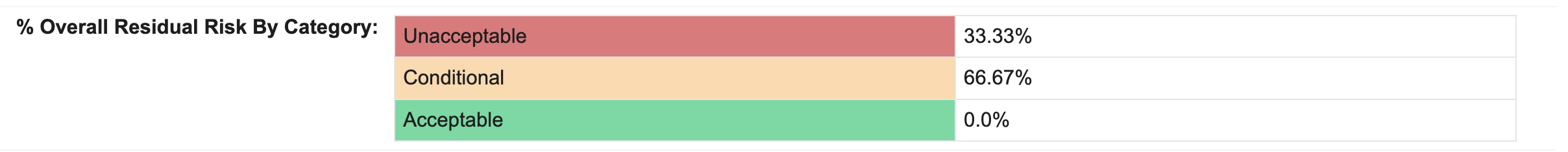

3. residual-ri-by-category-table:

   • Maps residual risk data by category.

   "residual-ri-by-category-table": { "key": 12 }




4. risk-assessment-items-choice-list:

   • Specifies how items are selected.

   "risk-assessment-items-choice-list": { "key": 2 }

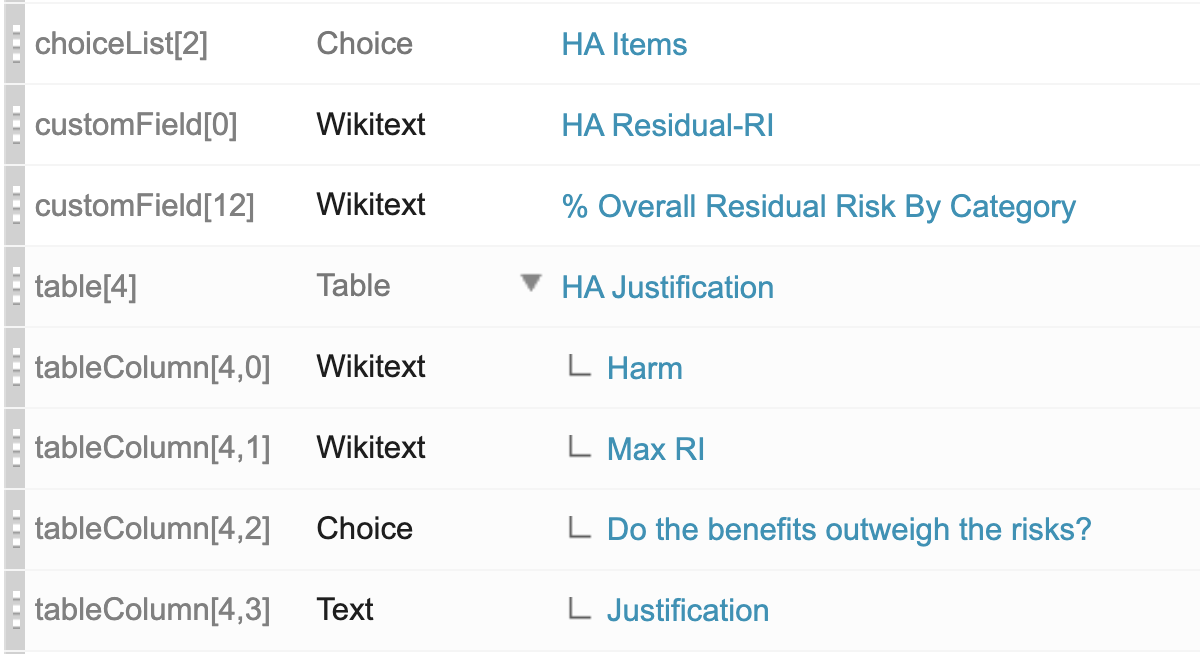

Full Example (hazard-analysis):

{
  "orre-bra-tracker-config": {
    "justification-table": {
      "harm-wiki-link-key": 0,
      "key": 4,
      "risk-index-key": 1
    },
    "residual-ri-profile-table": { "key": 0 },
    "residual-ri-by-category-table": { "key": 12 },
    "risk-assessment-items-choice-list": { "key": 2 }
  }
}

Risk Assessment Tracker Configuration

The risk-assessment-tracker-config section specifies the source fields for risk data:

1. Keys:

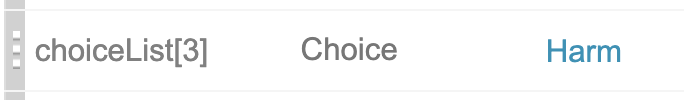

   • harm-choice-list-key




   • post-occurrence-key

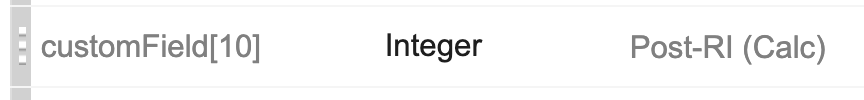

   • post-ri-key

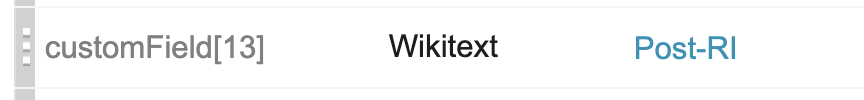

   • post-ri-wiki-key




   • severity-key




   • tracker-name

2. Example (hazard-analysis):

   {
     "risk-assessment-tracker-config": {
       "harm-choice-list-key": 3,

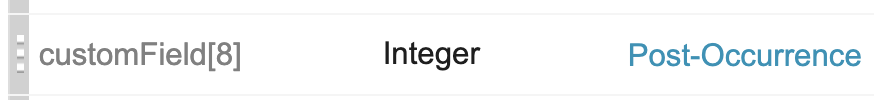

       "post-occurrence-key": 8,
       "post-ri-key": 10,
       "post-ri-wiki-key": 13,

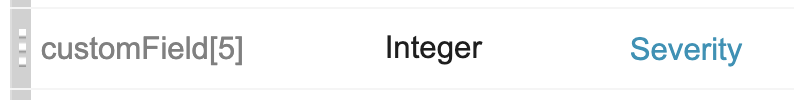

       "severity-key": 5,
       "tracker-name": "Hazard Analysis"
     }
   }

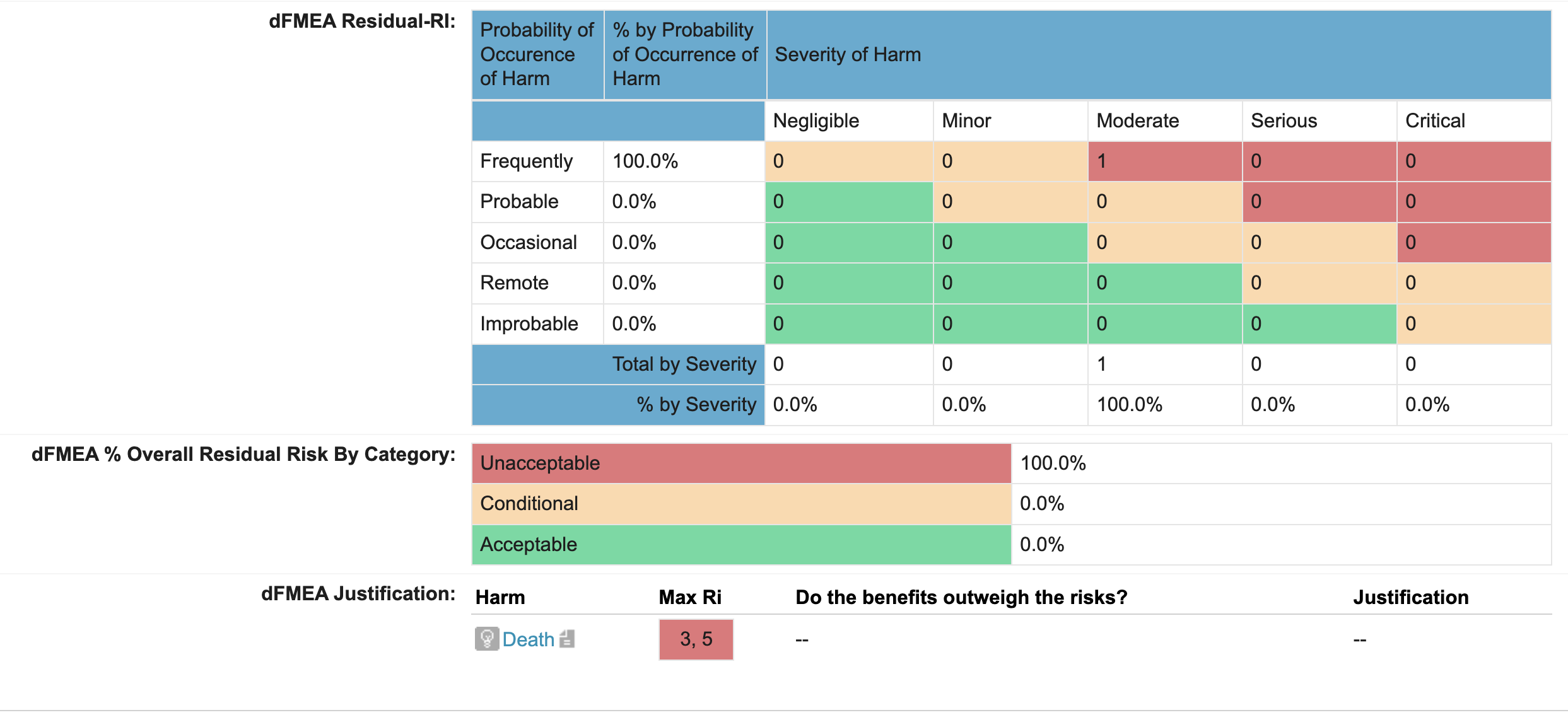

Adding a New Element (dfmea)

To add a new element, configure both the tracker and the ORRE-BRA settings.

1. Define Tracker Configuration:

   "dfmea": {
     "orre-bra-tracker-config": {
       "justification-table": {
         "harm-wiki-link-key": 3,
         "key": 3,
         "risk-index-key": 4
       },
       "residual-ri-profile-table": { "key": 1 },
       "residual-ri-by-category-table": { "key": 13 },
       "risk-assessment-items-choice-list": { "key": 1 }
     },
     "risk-assessment-tracker-config": {
       "harm-choice-list-key": 3,
       "post-occurrence-key": 8,
       "post-ri-key": 10,
       "post-ri-wiki-key": 18,
       "severity-key": 5,
       "tracker-name": "dFMEA"
     }
   }

2. Add dfmea to the List:

   "risk-assessment-elements": ["hazard-analysis", "dfmea"]

[
  { "text:" "hazard-analysis" },
  { "text": "dfmea" }
]

This is expected and new elements can be added either way.

Final Example

Complete Configuration:

{
  "orre-bra": {
    "orre-bra-tracker-name": "ORRE-BRA",
    "risk-assessment-elements": ["hazard-analysis", "dfmea"],
    "hazard-analysis": {
      "orre-bra-tracker-config": {
        "justification-table": {
          "harm-wiki-link-key": 0,
          "key": 4,
          "risk-index-key": 1
        },
        "residual-ri-profile-table": { "key": 0 },
        "residual-ri-by-category-table": { "key": 12 },
        "risk-assessment-items-choice-list": { "key": 2 }
      },
      "risk-assessment-tracker-config": {
        "harm-choice-list-key": 3,
        "post-occurrence-key": 8,
        "post-ri-key": 10,
        "post-ri-wiki-key": 13,
        "severity-key": 5,
        "tracker-name": "Hazard Analysis"
      }
    },
    "dfmea": {
      "orre-bra-tracker-config": {
        "justification-table": {
          "harm-wiki-link-key": 3,
          "key": 3,
          "risk-index-key": 4
        },
        "residual-ri-profile-table": { "key": 1 },
        "residual-ri-by-category-table": { "key": 13 },
        "risk-assessment-items-choice-list": { "key": 1 }
      },
      "risk-assessment-tracker-config": {
        "harm-choice-list-key": 3,
        "post-occurrence-key": 8,
        "post-ri-key": 10,
        "post-ri-wiki-key": 18,
        "severity-key": 5,
        "tracker-name": "dFMEA"
      }
    }
  }
}

With these changes, any updates to ORRE-BRA or dFMEA items will automatically reflect in the tracker.
